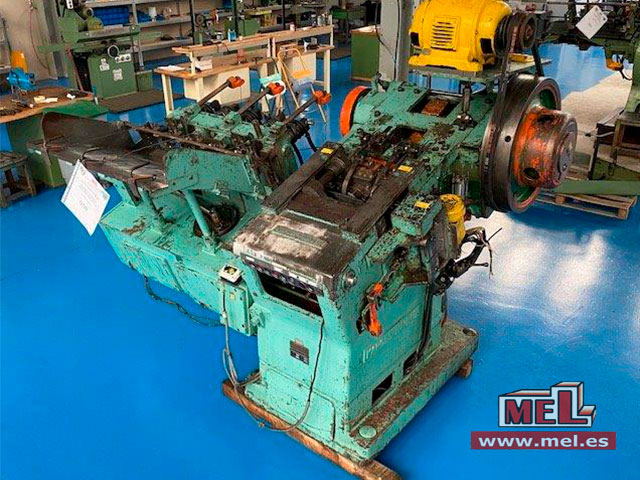

Press (Automatic)

Karges-Hammer mod. ASts-200

Reference

MEL-PRA-058

Technical information

  • Tonnage: 30 tons
  • Tool: Ø 73 mm double
  • Max. output: 300 strokes per minute
  • Stroke: 65 mm
  • Min – Max width of strip: 54 – 205 mm
  • Min – Max length of strip: 720 – 1000 mm
  • Max. diameter of cutting edge (single die): 200 mm
  • Max. diameter of cutting edge (double die): 100 mm

More pictures and video

Curlers (Round Ends)

Karges-Hammer Mod. DAR 115/2

Reference

MEL-VCT-049

Technical information

  • Tool: Ø 73 mm
  • Max. end diameter: Ø 130 mm
  • Max. output: 700 ends/min
  • Ø central disc: 460 mm
  • Ø internal sector: 595 mm
  • Sector development: 1380 mm

MEL-VCT-049-01

More pictures and video

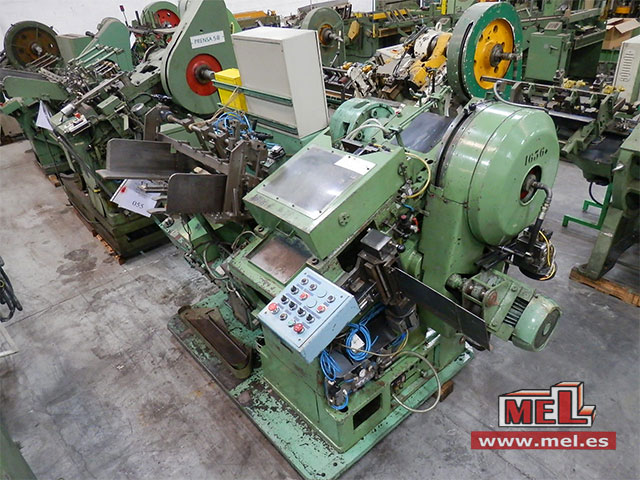

Press (Automatic)

Karges-Hammer Mod. PNS-210

Reference

MEL-PRA-055

Technical information

  • Tonnage: 30 tons
  • Tool: No
  • Max. output: 350 strokes per minute
  • Stroke: 50 mm
  • Min – Max width of strip: 82 – 210 mm
  • Min – Max length of strip: 720 – 1000 mm
  • Max. diameter of cutting edge (single die): 200 mm
  • Max. diameter of cutting edge (double die): 100 mm
  • Pneumatic clutch

More pictures and video

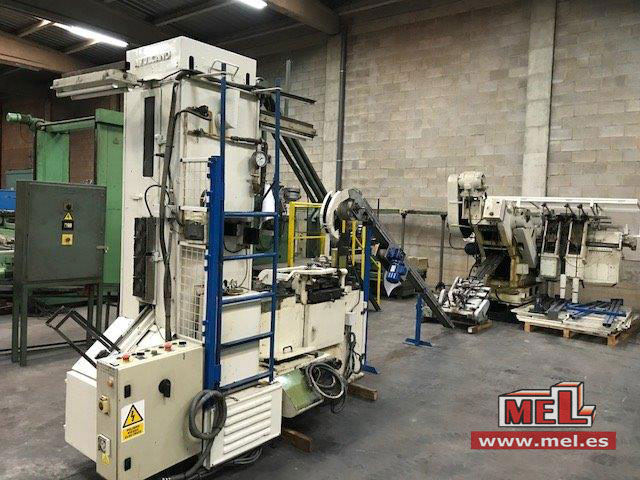

Complete Endmaking Lines

Karges-Hammer mod. ASts-230

Reference

MEL-LT-042

Technical information

  • Tool: Asparragus (RR 81 x 156) mm.
  • Output: 180 ends/min
  • Consisting of:
    • Automatic press Karges-Hammer mod. ASts-230 (40 Tn).
    • Single die.
    • Disc curler Karges-Hammer mod. ARU-160.
    • Magnétic conveyor.
    • Liner Vulcano mod. BAQ-20.
    • Vertical gas oven Vulcano mod. FSU-20.

More pictures and video
