MEL Canmaking Machinery

Blema-Aue mod. PKXStr 1000.2

Reference

MEL-CZS-056

Technical Information

• With sheet feeder
• With Strip feeder from scroll shear to automatic press
• Tool: No
• Max. sheet size: 1050 x 1050 mm
• Electromagnetic clutch

More information

Blema Aue

Scroll Die for Ends Ø 65 mm

Reference

MEL-TCS-202

Technical Information

• Tool: Ø 65 mm
• Kniffe Length: 880 mm (9 Ends in Line)

More information

Scroll Die for Ends Ø 153 mm

Reference

MEL-TCS-201

Technical Information

• Tool: Ø 153 mm
• Kniffe Length: 961 mm (5 Ends in Line)

More information

Kircheis mod. RBA

Reference

MEL-RBA-011

Technical Information

• Max. output: 75 cans/min
• Max. can size: Ø 140 x 50 (h) mm
• Diameter range: 30 – 140 mm
• Tool: Ø 135 x 30(h) mm

More information

Kircheis

VULCANO mod. PS-30

Reference

MEL-PRS-060

Technical Information

• Tonnage: 30 Tons
• Stroke: 130 mm
• Centralised lubrication
• Special for trimming cans

More information

Vulcano

Fmi-Mecfond Mod. A-702

Reference

MEL-LT-043

Technical Information

• Tool: Ø 99 mm double
• Output: 600 ends/min
• Consisting of:
  • Scroll shear Fmi-Mecfond mod. A-181 with sheet feeder
  • Automatic press Fmi-Mecfond mod. A-702 (45 Tn), with double die
  • Double curler Fmi-Mecfond mod. A-758
  • Double Magnetic conveyor from curler to liner,
  • Double liner Fmi-Mecfond mod. A-833 with electronic compound injector Grace mod. MK-III
  • Ends stacker with magnetic rolls

More information

Fmi-Mecfond

Somme Mod. 220

Reference

MEL-CSF-091

Technical Information

• Tool: RR 125 (1/4 club)
• Max. inside diagonal: 220 mm
• Height range: 15 – 320 mm
• Max. output: 25 cans/min

More information

Somme

Continental Can Mod. 628-BNM-2

Reference

MEL-NC-010

Technical information

• Tool: Ø 73/Ø 70 mm
• 6 stations
• Max. output: 600 cans/min
• Diameter range: Ø 52 – Ø 100 mm
• Height range: 70–175 mm

More information

Continental Can

Somme Mod. 316

Reference

MEL-CC-090

Technical information

• Tool: Ø 153 mm
• 1 station
• Diameter range: 52 – 160 mm
• Height range: 30 – 350 mm
• Max. output: 35 cans/min

More information

Somme

Nordson NH4 + 25B

Reference

MEL-SRB-009

Technical information

• Double
• Heater NH4 + Pump 25B
• Rebarnized for the inside and outside of the cans seam.

More information

Nordson

Nordson NH4 + 25B

Reference

MEL-SRB-005

Technical information

• Double
• Heater NH4 + Pump 25B
• Rebarnized for the inside and outside of the cans seam.

More information

Nordson

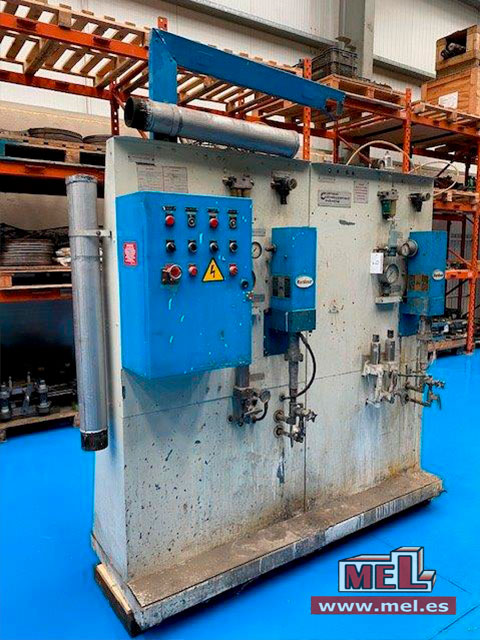

Nordson NH4 + 25B

Reference

MEL-SRB-002

Technical information

• Double
• Heater NH4 + Pump 25B
• Rebarnized for the inside and outside of the cans seam.

More information

Nordson

Metalbox Mod. 628-BNM-2

Reference

MEL-NC-009

Technical information

• Tool: Ø 99/Ø 96 mm
• 6 stations
• Max. output: 600 cans/min
• Diameter range: Ø 52 – Ø 100 mm
• Height range: 70–175 mm

More information

Metalbox

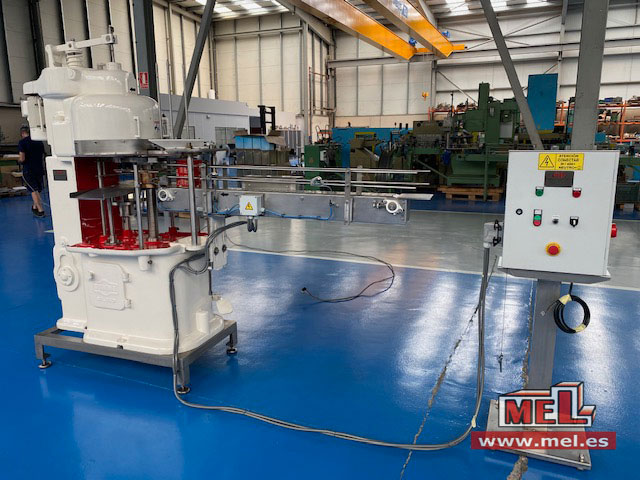

Somme Mod. 316

Reference

MEL-CC-087

Technical information

• Tool: Ø 153 mm
• 1 station
• Diameter range: 52 – 160 mm
• Height range: 30 – 350 mm
• Max. output: 35 cans/min

More information

Somme

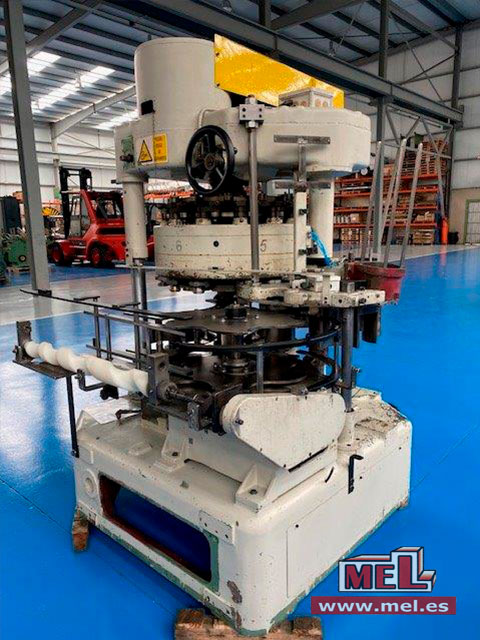

Fmi-Mecfond Mod. A-423

Reference

MEL-CC-089

Technical information

• Tool: Ø 153 and Ø 127 mm
• 6 stations
• Diameter range: 50 – 165 mm
• Height range: 40 – 270 mm
• Max. output: 250 cans/min
• Driven lifters

More information

Fmi-Mecfond

Continental Can Mod. 628-BNM-2

Reference

MEL-NC-008

Technical information

• Tool: Ø 65/Ø 62 mm
• 6 stations
• Max. output: 600 cans/min
• Diameter range: Ø 52 – Ø 100 mm
• Height range: 70–175 mm

More information

Continental Can

Somme Mod. 312

Reference

MEL-CF-088

Technical information

• Tool: RR-125 (1/4 club) (RR 60 x 104 mm)
• Inside diagonal range: 55-170 mm
• Height range: 15–130 mm
• Max. output: 25 cans/min

More information

Somme

Precision Tools mod. FDC-100

Reference

MEL-SRP-002

Technical information

• Diameter range: Ø65-Ø153 mm
• Rate of application: up to 60 m/min.

More information

FDC-100 Precision Tools

Precision Tools mod. FDC-100

Reference

MEL-SRP-001

Technical information

• Diameter range: Ø65-Ø153 mm
• Rate of application: up to 60 m/min.

More information

FDC-100 Precision Tools

Frei Mod. PCA/G 2X10

Reference

MEL-HHE-019

Technical information

• 2×10 meters
• Gas (20 burners)
• Diameter range: Ø52-Ø100 mm

More information

Frei

Kurt Lachenmeier mod. Stretch Hood System

Reference

MEL-EVE-004

Technical information

• Pallet dimensions: 1000 x 1200 mm
• Pallet height: 2500 mm max.

More information

Kurt Lachenmeier

PEÑALVER

Reference

MEL-CTT-010

Technical information

• Measures: 120 mm width x 2500 mm length
• From curler to liner

More information

Peñalver

PEÑALVER

Reference

MEL-CTT-009

Technical information

• Measures: 120 mm width x 2500 mm length
• From curler to liner

More information

Peñalver

Fmi-Mecfond Mod. A-363

Reference

MEL-PCS-047

Technical information

• Tool: Ø 153 mm
• 6 stations
• Diameter range: 65-165 mm
• Height range: 40-300 mm
• Output Max.: 300 cans/min
• Spin flanger

More information

Fmi-Mecfond

MEL mod. 1050

Reference

MEL-CG-054

Technical information

• Max. sheet size: 1050 mm
• Automatic guillotine slitter
• Max. cut thickness: 1,5 mm

More information

Soudronic Mod. NRZd-12

Reference

MEL-SE-033

Technical information

• Arm nº: III
• Diameter range: 52 – 350 mm
• Height range: 50 – 250 mm
• Output: 20 cans/min
• Overlap: Butterfly

More information

Soudronic

Soudronic Mod. ABM-400 SW

Reference

MEL-SE-032

Technical information

• Tool: Ø 99 mm
• Diameter range: 52 – 115 mm
• Height range: 96 – 260 mm
• Output: 300 cans/min (50 m/min)
• Static Converter Unisound
• DISCON system
• Welding control monitor
• Body feeder prepared for scoring station
• Overlap: SuperWima

More information

Soudronic

Ocsam mod. TP-1002

Reference

MEL-AC-021

Technical information

• Max. cans diameter: Ø 100 mm
• Max. cans height: 320 mm
• Production capacity: 800 bodys/min
• Body feeder from double slitter to welder

More information

Ocsam

Krupp mod. Cut-O-Mat

Reference

MEL-CD-053

Technical information

• Max. sheet size: 1200 x 1200 mm
• With sheet feeder
• 1st operation: 4 pairs cutters
• 2nd operation: 8 pairs cutters
• Carbide cutters
• Fixing hydraulic cutters
• Shaft diameter: Ø 105 mm

More information

Krupp

Larsen mod. DPR-20-S

Reference

MEL-SE-028

Technical information

• Diameter range: Ø 140 – Ø 340 mm
• Max. output: 35 cans/min

More information

Larsen

Tmp-Zago Mod. DVSI

Reference

MEL-BV-020

Technical information

• Tool: Ø 65 mm (final bead can)
• 8 stations
• Diameter range: Ø 52 – Ø 99 mm
• Height range: 50 – 130 mm
• Max. output: 600 cans/min

More information

Tmp-Zago

Tmp-Zago Mod. DVSI

Reference

MEL-BV-019

Technical information

• Tool: Ø 84 mm (final bead can)
• 8 stations
• Diameter range: Ø 52 – Ø 99 mm
• Height range: 50 – 130 mm
• Max. output: 600 cans/min

More information

Tmp-Zago

Karges-Hammer mod. ASts-200

Reference

MEL-PRA-058

Technical information

• Tonnage: 30 tons
• Tool: Ø 73 mm double
• Max. output: 300 strokes per minute
• Stroke: 65 mm
• Min – Max width of strip: 54 – 205 mm
• Min – Max length of strip: 720 – 1000 mm
• Max. diameter of cutting edge (single die): 200 mm
• Max. diameter of cutting edge (double die): 100 mm

More information

Karges-Hammer

Karges-Hammer Mod. DAR 115/2

Reference

MEL-VCT-049

Technical information

• Tool: Ø 73 mm
• Max. end diameter: Ø 130 mm
• Max. output: 700 ends/min
• Ø central disc: 460 mm
• Ø internal sector: 595 mm
• Sector development: 1380 mm

More information

Karges-Hammer

Nina Mod. C.A.

Reference

MEL-CC-086

Technical information

• Tool: Ø 153 mm
• 1 stations
• Max. output: 30 cans/min
• Max. diameter: 155 mm
• Height range: 70-310 mm

More information

Nina

MEL Mod. RTS

Reference

MEL-RTS-027

Technical information

• Max. strips size: 250 x 1050 mm
• Double

More information

RTS

IMC Mod. 21-AB

Reference

MEL-EFA-082

Technical information

• Min. end size: 51 x 51 mm
• Max. end size: 138 x 172 mm
• Max. output: 140 ends/min
• With vertical gas oven

More information

Imc

Cerlei mod. 21-AP

Reference

MEL-EFA-086

Technical information

• Min. end size: 51 x 51 mm
• Max. end size: 138 x 172 mm
• Max. output: 140 ends/min
• With vertical gas oven

More information

Cerlei

Imc Mod. 485

Reference

MEL-ECA-084

Technical information

• Tool: Ø 73 mm
• Max. output: 325 ends/min
• Max. diameter: 105 mm
• With electronic compound injector Grace mod. MK-IV
• With vertical gas oven

More information

Imc

Cuomo

Reference

MEL-ECA-085

Technical information

• Tool: Ø 84 mm
• Max. output: 300 ends/min
• Max. diameter: 105 mm
• With electronic compound injector Grace mod. MK-III
• With vertical gas oven

More information

Cuomo

Crabtree Mod. HEM5-8000-QF

Reference

MEL-AH-021

Technical information

• Printing & Coating Machinery
• Sheet Stacker
• Max. sheet size: 1000 x 1200 mm

More information

Crabtree

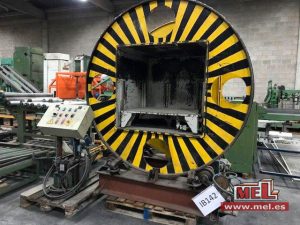

Bundle Turner MEL

Reference

MEL-VP-003

Technical information

• Printing & Coating Machinery
• Bundle Turner
• Max. sheet size: 1050 x 1050 mm

More information

Bundle Turner

Somme Mod. 316

Reference

MEL-CC-084

Technical information

• Tool: Ø 153 mm
• 1 station
• Diameter range: 52 – 160 mm
• Height range: 30 – 350 mm
• Max. output: 35 cans/min

More information

Somme

MEL

Reference

MEL-RTH-026

Technical information

• Tool: Ø 117 mm

More information

MEL

Fmi-Mecfond Mod. A-305

Reference

MEL-SP-006

Technical information

• Tool: Ø 73 mm (45 x 2) mm height
• 8 stations
• Diameter range: Ø 65 – Ø 165 mm
• Height range: 60 -170 mm
• Cutting blade diameter: Ø 60 mm
• Max. output: 800 cans/min (400 x 2)

More information

Fmi-Mecfond

Krupp Mod. Can-O-Mat

Reference

MEL-PLM-022

Technical information

• Necker + Spin flanger + Beader
• Tool: Ø 73 mm
• 8 stations
• Diameter range: Ø 52 – Ø 99 mm
• Height range: 35 – 174 mm
• Output: from 200 to 800 cans/min

More information

Krupp

Blema-Aue Mod. KEAVU-160

Reference

MEL-CF-085

Technical information

• Tool: RR asparagus (81 x 156 mm)
• 5 stations
• Min. can size: 40 x 40 mm
• Max. can size: 160 x 160 mm
• Height range: 16 – 160 mm
• Max. output: 150 cans/min

More information

Blema Aue

Krupp Mod. DVKO

Reference

MEL-PLM-021

Technical information

• Spin flanger + beader
• Tool: Ø 99 mm
• 8 stations
• Diameter range: Ø 52 – Ø 105 mm
• Height range: 50 – 190 mm
• Output: from 200 to 800 cans/min

More information

Krupp

Vulcano Mod. PS-30

Reference

MEL-EXP-009

Technical information

• Tool: RR asparagus (81 x 156 mm)
• Max. output: 80 cans/min

More information

Vulcano

Klinghammer Mod. 481

Reference

MEL-PF-046

Technical information

• Tool: RR asparagus (81 x 156 mm)
• Min. can size: 50 x 50 mm
• Max. can size: 100 x 200 mm
• Height range: 50 – 400 mm
• Max. output: 80 cans / min

Klinghammer

Somme Mod. ASIA-44

Reference

MEL-CF-083

Technical information

• Tool: 235 x 235 mm (18 liters)
• Max. inside diagonal: 375 mm
• Height range: 30 – 350 mm
• Max. output: 25 cans/min

More images and video

Somme

Vatan Makina Mod. AUT

Reference

MEL-EFA-081

Technical information

• Tool: 235 x 235 mm
• Max. output: 30 ends/min

More information

Vatan Makina

KPLL mod. Simple

Reference

MEL-VCT-048

Technical information

• Tool: Ø 165 mm
• Max. end diameter: Ø 175 mm
• Max. output: 200 ends/min
• Ø central disc: 150 mm
• Ø internal sector: 470 mm
• Sector development: 1100 mm

More information

Kpll

BUSCETO mod. PD-40

Reference

MEL-PRA-057

Technical information

• Tonnage: 40 tons
• Tool: No
• Max. output: 150 strokes per minute
• Stroke: 80 mm
• Min – Max width of strip: 60 – 195 mm
• Min – Max length of strip: 500 – 1000 mm
• Max. diameter of cutting edge (single die): 190 mm
• Max. diameter of cutting edge (double die): 100 mm
• Pneumatic clutch

More information

Busceto

MGN mod. 2AP

Reference

MEL-ATP-020

Technical information

• Max. strip size: 1100 X 450 mm

More information

VULCANO mod. PA-25

Reference

MEL-PRS-057

Technical information

• Tonnage: 25 tons
• Stroke: 90 mm
• Special for trimming cans

More information

Vulcano

LOMASA mod. E.R.

Reference

MEL-ECA-083

Technical information

• • Tool: Ø 165 mm
  • Max. diameter: 175 mm
  • Max. output: 150 ends/min
  • With electronic compound injector Grace mod. MK-III

More information

Lomasa

SHIN-I mod. S-B26B

Reference

MEL-CZS-052

Technical information

• • With sheet feeder and stacker
  • Tool: Ø 153 Carbide
  • Max. sheet size: 1100 x 1100 mm
  • Pneumatic clutch

More information

SHIN-I

Necker Fmi-Mecfond mod. A-326

Reference

MEL-NC-007

Technical information

• • Tool: Ø 65/Ø 62 mm
  • 6 stations
  • Max. output: 300 cans/min
  • Diameter range: Ø 50 – Ø 100 mm
  • Height range: 80 – 210 mm

More information

Fmi-Mecfond Necker

Bundle Turner SFEAT

Reference

MEL-VP-002

Technical information

• Printing & Coating Machinery
• Bundle Turner

More information
